Vertical Machining Center VL-18i
Features
  • ECOM Precision VL-i Series is a combination of speed, rigidity, and precision. It eliminates vibration, ensuring excellent surface finishes and long cutting tool life. Adhering to our outstanding quality and development experience on the vertical machining centers for many years, the series of vertical high-speed machining centers can provide your customers a faster processing efficiency and more machining quality.
  • The VL-i model comes with a high-performance roller linear guideway for all 3-axis. It provides fast & accurate rapid feed, and also the allowance of heavy workpiece Z-axis.
  • The 3-axis pre-loaded C3 class high precision ballscrews all has been well pre-extension, and directly coupled to A/C servo motors. It significantly eliminates backlash and ensures the highest rigidity.
  • The large-diameter ultra precision ballscrews directly coupled to the feed motor and are arranged in the center of each guideway and close to the cutting point.
https://www.ecomcnc.com/_files/upload/products02/F-VL-18i-1.png

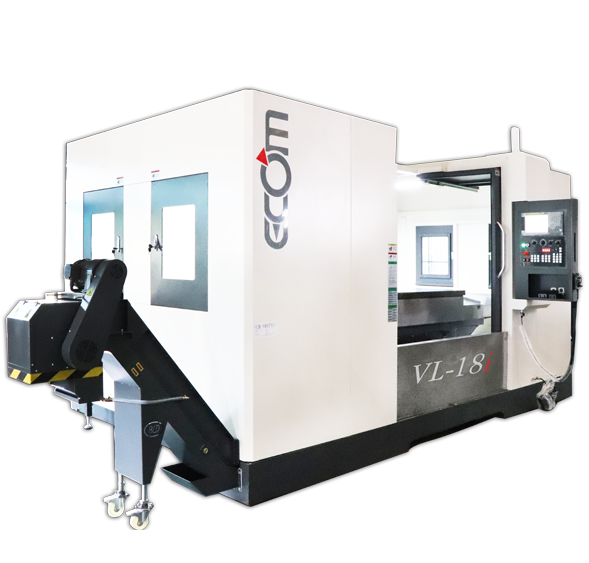

https://www.ecomcnc.com/_files/upload/products02/F-VL-18i-2.png
Specifications
VL-18i
Travel X - Axis Travel 1800mm
Y - Axis Travel 900mm
Z - Axis Travel 800mm
pindle Center To Z - Rail 1030mm
Spindle Nose To Table 185 - 985mm
Table Table Size 2000 X 900mm
T - Slot (number*width*pitch) 5*22mm*165mm
Maximum Table Load 1600kg
Spindle Spindle Taper BT-50
Spindle RPM 6000rpm
Type Of Driving Belt Type
Feed Rate X. Y Axis Rapid Feed Rate 20m/min
Z Axis Rapid Feed Rate 15m/min
X. Y. Z Max.Cutting Feed Rate 8m/min
Automatic tool changer Arm Type (Tool to Tool) 24T  (3sec)
Max. Tool Diameter*Length(adjacent) Φ220X350mm(Φ110X350mm)
Max. Tool Weight 15 kg
Motor   MITSUBISHI FANUC
Spindle Motor 15/18.5kW 15/18.5kW
X. Y Axis Servo Motor 4.5kW 3.0kW
Z Axis Servo Motor 4.5kW BS 3.0kW BS
Machine Accuracy Positioning Accuracy (JIS) ± 0.005mm / 300mm
Repeat Poitioning Accuracy (JIS) ± 0.003mm
Others Approximate Weight 14000kg
Floor Space Measurement 4900*4202*3485mm

Above specification are subject to change without prior notice.
Standard Accessories
Fully-Enclosed Splash Guard
Electrical Cabinet with Heat Exchanger
Work Lamp
Alarm Lamp
High Pressured Coolant & Air Gun
Spindle Air Blast & Coolant Nozzle
Rigid Tapping
Auto Lubrication System
Editable CF Card Function
Portable Hand Wheel (MPG)
Auto interrupt & Power Off System
Leveling Blocks & Screws
Tool & Tool Box
Chip Flushing System
Spindle Coolant System
Screw Type Chip Conveyor + Cart
Chain Type Chip Conveyor + Cart
Operation Manual
Optional Accessories
BT50 8000rpm
FANUC + AICC II
FANUC Manual Guide i
Air Conditioner for Electrical Cabinet
Tool Setter (Metrol TM-26D)
Tool Setter T24E-B-26S (Disc diameter:30mm)
Renishaw TS-27R (touch probe)
Renishaw NC4 (laser probe)
Renishaw OMP60 (optical workpiece probe)
Renishaw OMP60 (radio workpiece probe)
Oil skimmer (disc type)
CTS 30 bar (belt driven)
CTS 50 bar (belt driven)
Heidenhain Linear Scales for XYZ
Oil Mist Collector
Transformer 40kva
Chain Type Chip Conveyor + Cart
CE Standard
