Specifications

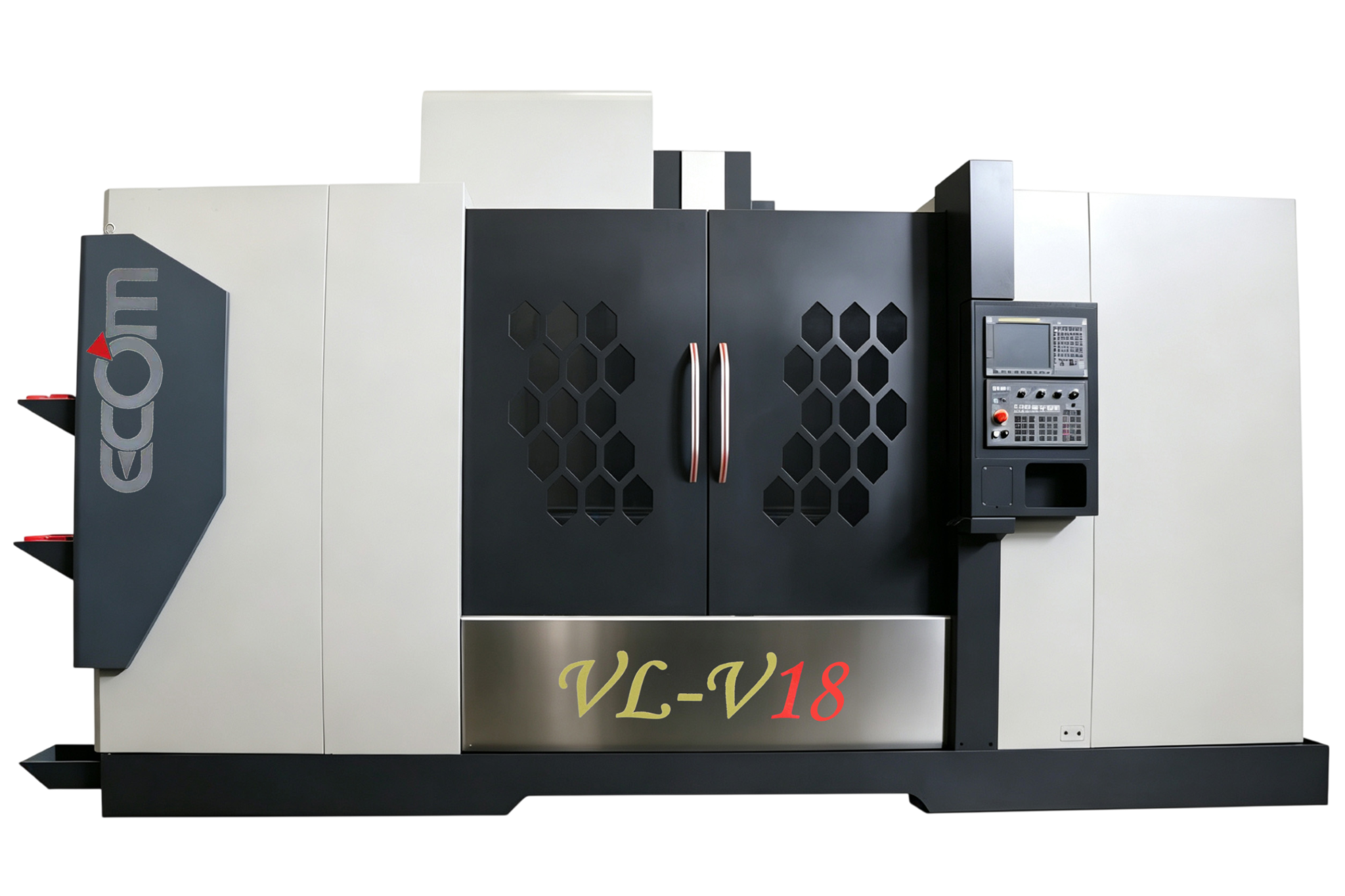

VL-V18
| Travel | X - Axis Travel | 1800mm | |
|---|---|---|---|
| Y - Axis Travel | 900mm | ||
| Z - Axis Travel | 800mm | ||
| Spindle Center To Z - Rail | 1030mm | ||
| Spindle Nose To Table | 185 - 985mm | ||
| Table | Table Size | 2000 X 900mm | |
| T - Slot (number*width*pitch) | 5*22mm*165mm | ||
| Maximum Table Load | 1600kg | ||
| Spindle | Spindle Taper | BT-40 | |
| Spindle RPM | 50-12000rpm | ||
| Type Of Driving | Direct Type | ||
| Feed Rate | X. Y Axis Rapid Feed Rate | 20m/min | |
| Z Axis Rapid Feed Rate | 20m/min | ||
| X. Y. Z Max.Cutting Feed Rate | 15m/min | ||
| Automatic tool changer | Arm Type (Tool to Tool) | 24T (3sec) | |
| Max. Tool Diameter*Length (adjacent) | Φ150X300mm(Φ78X300mm) | ||
| Max. Tool Weight | 8 kg | ||
| Motor | MITSUBISHI | FANUC | |
| Spindle Motor | 11/18.5kW | 11/18.5kW | |
| X. Y Axis Servo Motor | 3.0kW | 3.0kW | |
| Z Axis Servo Motor | 3.0kW BS | 3.0kW BS | |
| Others | Approximate Weight | 1000kg | |
| Floor Space Measurement | 4900*4202*3480mm | ||
Above specification are subject to change without prior notice.
Standard Accessories
Optional Accessories
| Fully-Enclosed Splash Guard |
| Electrical Cabinet with Heat Exchanger |
| Work Lamp |
| Alarm Lamp |
| High Pressured Coolant & Air Gun |
| Spindle Air Blast & Coolant Nozzle |
| Rigid Tapping |
| Auto Lubrication System |
| Editable CF Card Function |
| Portable Hand Wheel (MPG) |
| Auto interrupt & Power Off System |
| Leveling Blocks & Screws |
| Tool & Tool Box |
| Chip Flushing System |
| Operation Manual |
Optional Accessories
| BT50 / 18.5~22kW / 6000rpm Belt Type Spindle |
| FANUC + AICC II |
| FANUC Manual Guide i |
| Armless ATC 16 position (umbrella type) |
| Air Conditioner for Electrical Cabinet |
| Tool Setter (Metrol TM-26D) |
| Oil & Coolant Separator (disc type) |
| CTS 30 bar (belt driven) |
| Spindle Coolant System |
| Chain Type Chip Conveyor + Cart |
| Transformer 20kva |
| CE Standard |
