Vertical Machining Center VLB-11i
Features
  • The VLB i Series offers optimum alignment of the motor and gearbox ensures no offset and guarantees steady smooth movement of the headstock along the Z-axis. This design significantly reduces torsion on the headstock and ensures optimum rigidity, long term accuracy, and repeatability. Large diameter pre-tensioned ballscrews have a double-nut preloaded design eliminating the potential thermal growth and promote high accuracy and high-speed positioning.
  • The X&Y roller linear guideways fully support the machine’s saddle and worktable, delivering outstanding X&Y-axis accuracy over the full travel range of the machine. This is critical during machining heavy workpieces. It can avoid deflection and is a key factor in maintaining part accuracy and precision. The Z sliding surface areas and gibs are coated with Turcite-B and hand-scraped for perfect fit and alignment.

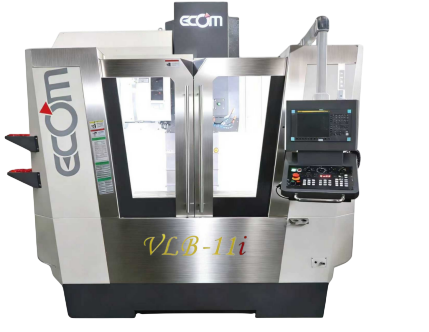

https://ecomcnc.com/_files/upload/products02/VLB-11i-Photoroom.png
Specifications
VLB-11i
Travel X - Axis Travel 1100mm
Y - Axis Travel 650mm
Z - Axis Travel 600mm
Spindle Center To Z - Rail 650mm
Spindle Nose To Table 120 - 720mm
Table Table Size 1200 X 600mm
T - Slot (number*width*pitch) 5*18mm*100mm
Maximum Table Load 800kg
Spindle Spindle Taper BBT-40
Spindle RPM 50-8000rpm
Type Of Driving Belt Type
Feed Rate X. Y Axis Rapid Feed Rate 36m/min
Z Axis Rapid Feed Rate 20m/min
X. Y. Z Max.Cutting Feed Rate 10m/min
Automatic tool changer Arm Type (Tool to Tool) 24T  (3sec)
Max. Tool Diameter*Length(adjacent) Φ150X300mm(Φ78X300mm)
Max. Tool Weight 8 kg
Motor   MITSUBISHI FANUC
Spindle Motor 11/18.5kW 11/18.5kW
X. Y Axis Servo Motor 3.0kW 3.0kW
Z Axis Servo Motor 3.0kW BS 3.0kW BS
Others Approximate Weight 6850kg
Floor Space Measurement 4350*3300*2900mm

Above specification are subject to change without prior notice.
Standard Accessories
FANUC 0i-MF TYPE-3B Plus 10.4" LCD screen
Fully-Enclosed Splash Guard
Electrical Cabinet with Heat Exchanger
Work Lamp
Alarm Lamp
High Pressured Coolant & Air Gun
Spindle Air Blast & Coolant Nozzle
Rigid Tapping
Auto Lubrication System
Editable CF Card Function
Portable Hand Wheel (MPG)
Auto interrupt & Power Off System
Leveling Blocks & Screws
Tool & Tool Box
Chip Flushing System
Screw type Chip Conveyor with Cart（Front）
Y Axis Dual Auger Chip Extraction
XYZ-Axis Screw hollow oil cooling
Air balance weight
Spindle Coolant System
Spindle air curtain protection
Around spindle cutting coolant unit
Operation Manual
Optional Accessories
FANUC + AICC II
FANUC Manual Guide i
Air Conditioner for Electrical Cabinet
Tool Setter (Metrol TM-26D)
Tool Setter T24E-B-26S (Disc diameter:30mm)
Renishaw TS-27R (touch probe)
Renishaw NC4 (laser probe)
Renishaw OMP60 (optical workpiece probe)
Renishaw RMP60 (radio workpiece probe)
Oil skimmer (disc type)
CTS 30 bar (belt driven)
CTS 50 bar (belt driven)
Heidenhain Linear Scales for XYZ
Oil Mist Collector
Transformer 20kva
Chain Type Chip Conveyor + Cart
CE Standard
