Vertical Machining Center VL-9i
Features

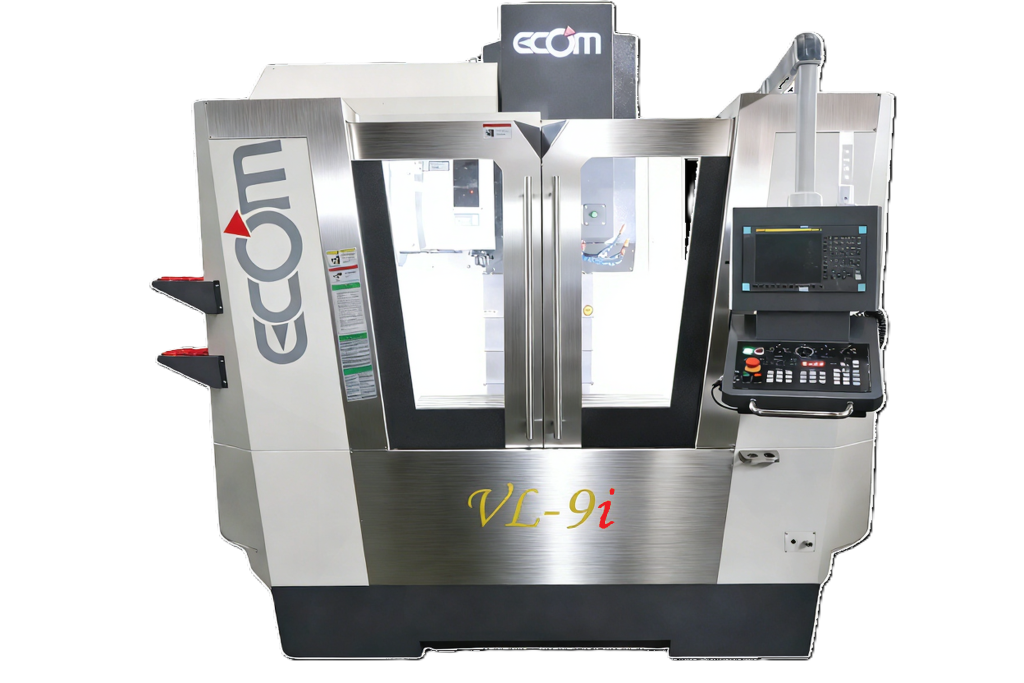

  • ECOM Precision VL-i Series is a combination of speed, rigidity, and precision. It eliminates vibration, ensuring excellent surface finishes and long cutting tool life. Adhering to our outstanding quality and development experience on the vertical machining centers for many years, the series of vertical high-speed machining centers can provide your customers a faster processing efficiency and more machining quality.
  • The VL-i model comes with a high-performance roller linear guideway for all 3-axis. It provides fast & accurate rapid feed, and also the allowance of heavy workpiece Z-axis.
  • The 3-axis pre-loaded C3 class high precision ballscrews all has been well pre-extension, and directly coupled to A/C servo motors. It significantly eliminates backlash and ensures the highest rigidity.

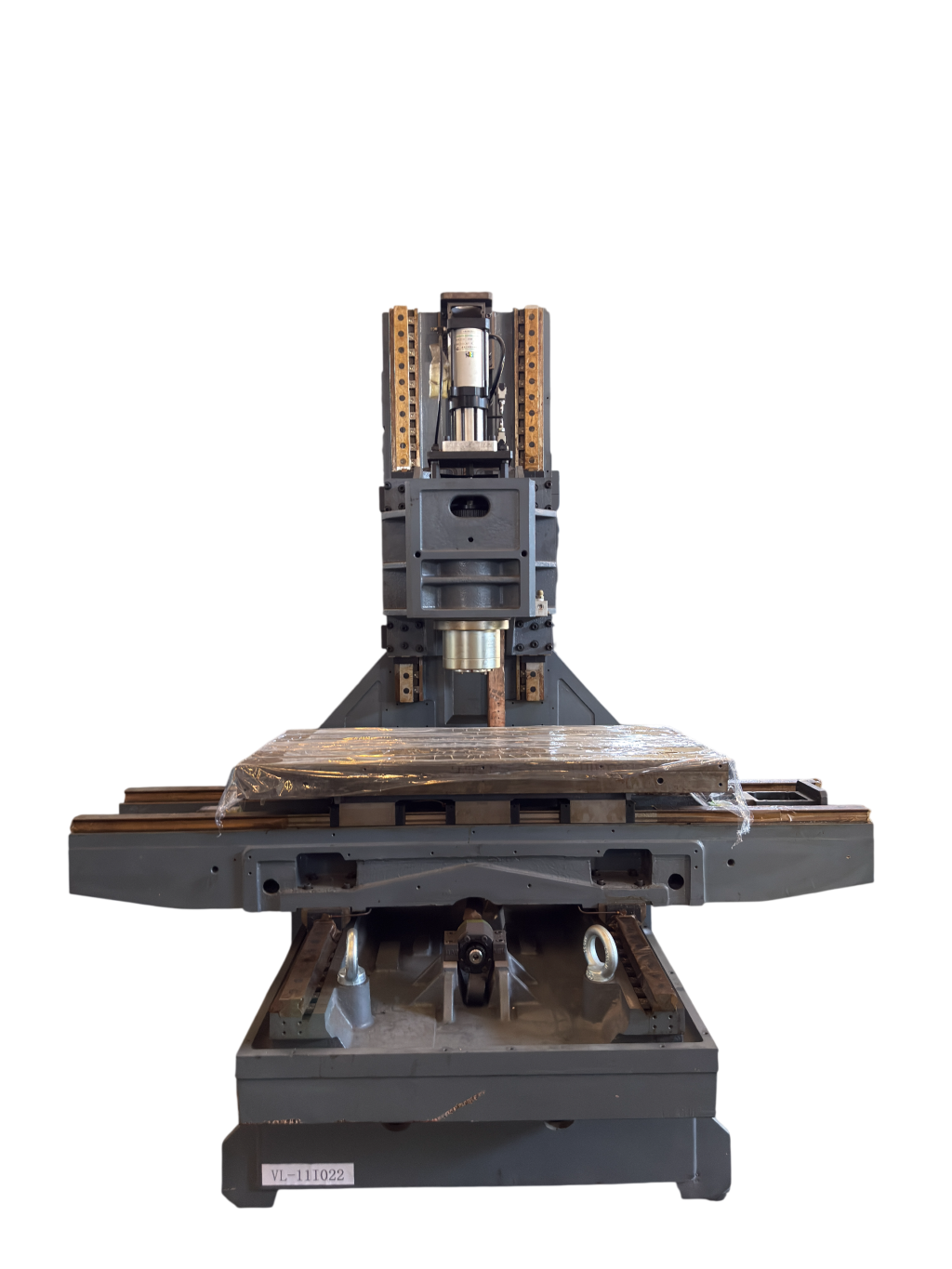

  • The large-diameter ultra precision ballscrews directly coupled to the feed motor and are arranged in the center of each guideway and close to the cutting point.
https://ecomcnc.com/_files/upload/products02/VL-9i_s1.png
https://ecomcnc.com/_files/upload/products02/9i光機去背_s.png
Specifications
VL-9i
Travel X - Axis Travel 900mm
Y - Axis Travel 650mm
Z - Axis Travel 600mm
Spindle Center To Z - Rail 665mm
Spindle Nose To Table 120 - 720mm
Table Table Size 1100 X 600mm
T - Slot (number*width*pitch) 5*18mm*100mm
Maximum Table Load 800kg
Spindle Spindle Taper BBT-40
Spindle RPM 50-8000rpm
Type Of Driving Belt Type
Spindle Diameter Ф160
Feed Rate X. Y Axis Rapid Feed Rate 36m/min
Z Axis Rapid Feed Rate 36m/min
X. Y. Z Max.Cutting Feed Rate 10m/min
Automatic tool changer Arm Type (Tool to Tool) 24T  (3sec)
Max. Tool Diameter*Length(adjacent) Φ150X300mm(Φ78X300mm)
Max. Tool Weight 8 kg
Motor   MITSUBISHI FANUC
Spindle Motor 11/18.5kW 11/18.5kW
X. Y Axis Servo Motor 3.0kW 3.0kW
Z Axis Servo Motor 3.0kW BS 3.0kW BS
Others Approximate Weight 6800kg
Floor Space Measurement 3410*3300*2900mm

Above specification are subject to change without prior notice.
Standard Accessories
FANUC 0i-MF TYPE-3B Plus 10.4" LCD screen
Fully-Enclosed Splash Guard
Electrical Cabinet with Heat Exchanger
Work Lamp
Alarm Lamp
High Pressured Coolant & Air Gun
Spindle Air Blast & Coolant Nozzle
Rigid Tapping
Auto Lubrication System
Editable CF Card Function
Portable Hand Wheel (MPG)
Auto interrupt & Power Off System
Leveling Blocks & Screws
Tool & Tool Box
Chip Flushing System
Screw type Chip Conveyor with Cart（Front）
Y Axis Dual Auger Chip Extraction
XYZ-Axis Screw hollow oil cooling
Spindle Coolant System
Spindle air curtain protection
Around spindle cutting coolant unit
Operation Manual
Optional Accessories
FANUC + AICC II
FANUC Manual Guide i
Air Conditioner for Electrical Cabinet
Tool Setter (Metrol TM-26D)
Tool Setter T24E-B-26S (Disc diameter:30mm)
Renishaw TS-27R (touch probe)
Renishaw NC4 (laser probe)
Renishaw OMP60 (optical workpiece probe)
Renishaw RMP60 (radio workpiece probe)
Oil skimmer (disc type)
CTS 30 bar (belt driven)
CTS 50 bar (belt driven)
Heidenhain Linear Scales for XYZ
Oil Mist Collector
Transformer 20kva
Chain Type Chip Conveyor + Cart
CE Standard
